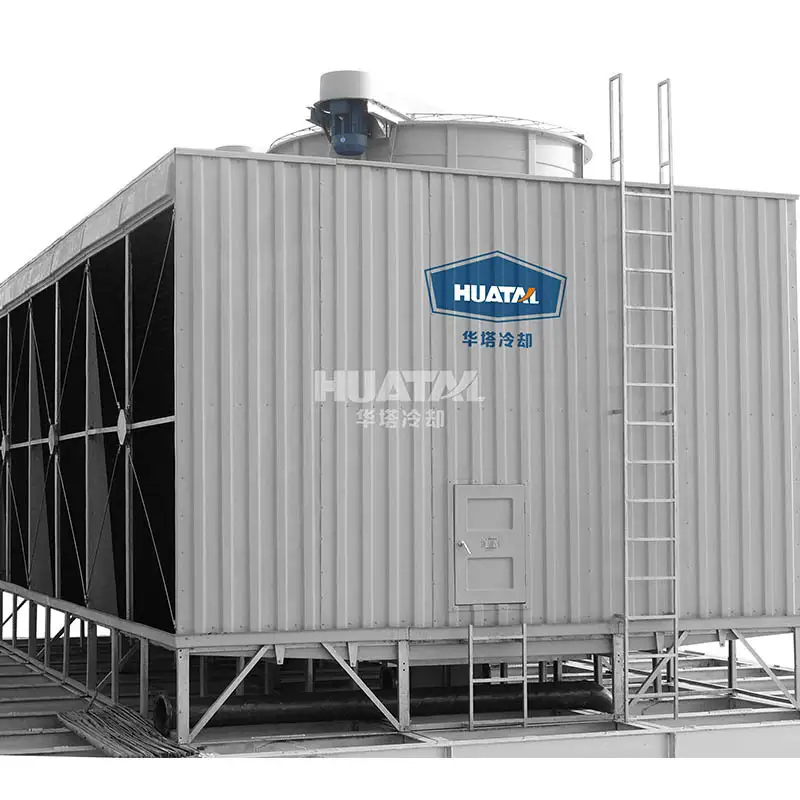

HKY Cross flow open cooling tower
Product features
HKY Cross flow open cooling tower
◆ High efficiency (100% cooling efficiency) : Independently developed, with intellectual property rights of the cooling tower core components, excellent performance; The size of the tower is reasonable, the filler volume and air volume have enough margin, and the thermal performance of the cooling tower is up to 100%.
◆ High efficiency and energy saving: the cooling tower body size, filler heat transfer area and large fan diameter meet the same cold efficiency, then the fan rotation speed will be low and the fan shaft power will be reduced, thus saving operation cost for clients.
◆ Low noise: high quality muffler materials and transmission parts can effectively control mechanical noise; The spray sprinkler is equipped with cover plate to minimize the sound of water flow. The tower body design is large, the fan noise is small, fully guarantees the cooling tower to operate under the low noise.
◆ The combination of multiple units can not affect the normal use in case of individual fan failure.
◆ When two or more units are assembled, it is recommended to add connected balance pipe to balance the water level of each tower.
HKY series minimum water flow chart | |
Type | (Liters /per sec) |
HKY-34A、34B、34C | 27.8-41.7 |
HKY-41A、41B、41C、41D | 48.6-69.4 |
HKY-50A、50B、50C、50D、50E | 83.3-138.9 |
HKY-60A、60B、60C、60D、60E、60F | 152.8-277.8 |
Technical parameters
| Type | Finished Size (mm) | Pneumatic System | Tower Lift | Interface Pipe Diameter（mm） | Weight | ||||||||
| Length(L) | Width(W) | Height(H) | Power(kw) | Diamete(mm) | mH₂O | Inlet pipe | Outlet Pipe | Overflow outlet pipe | Supplement Water Pipe | Sewage Outlet Pipe | Net Weight(Kg) | Operating Weight(kg) | |
| HKY-34A | 1900 | 3480 | 3630 | 3 | 1500 | 3.7 | DN150 | DN150 | DN80 | DN20 | DN50 | 1050 | 2250 |
| HKY-34B | 2100 | 3480 | 3630 | 4 | 1500 | 3.7 | DN150 | DN150 | DN80 | DN20 | DN50 | 1150 | 2350 |
| HKY-34C | 2100 | 3780 | 4270 | 4 | 1800 | 4.1 | DN150 | DN150 | DN80 | DN20 | DN50 | 1250 | 2550 |
| Type | Finished Size (mm) | Pneumatic System | Tower Lift | Interface Pipe Diameter（mm） | Weight | ||||||||
| Length(L) | Width(W) | Height(H) | Power(kw) | Diamete(mm) | mH₂O | Inlet pipe | Outlet Pipe | Overflow outlet pipe | Supplement Water Pipe | Sewage Outlet Pipe | Net Weight(Kg) | Operating Weight(kg) | |
| HKY-41A | 2600 | 4180 | 4400 | 5.5 | 2200 | 4.1 | DN200 | DN200 | DN80 | DN20 | DN50 | 1350 | 2850 |
| HKY-41B | 2600 | 4180 | 4600 | 5.5 | 2200 | 4.3 | DN200 | DN200 | DN80 | DN25 | DN50 | 1520 | 3130 |
| HKY-41C | 2600 | 4180 | 4810 | 7.5 | 2200 | 4.6 | DN200 | DN200 | DN80 | DN25 | DN50 | 1620 | 3770 |
| HKY-41D | 3000 | 4480 | 4810 | 7.5 | 2500 | 4.6 | DN200 | DN200 | DN80 | DN25 | DN50 | 2080 | 4300 |
| Type | Finished Size (mm) | Pneumatic System | Tower Lift | Interface Pipe Diameter（mm） | Weight | ||||||||
| Length(L) | Width(W) | Height(H) | Power(kw) | Diamete(mm) | mH₂O | Inlet pipe | Outlet Pipe | Overflow outlet pipe | Supplement Water Pipe | Sewage Outlet Pipe | Net Weight(Kg) | Operating Weight(kg) | |
| HKY-50A | 3000 | 5080 | 4410 | 7.5 | 2500 | 4.2 | DN200 | DN200 | DN80 | DN25 | DN50 | 2420 | 5070 |
| HKY-50B | 3000 | 5080 | 4810 | 11 | 2500 | 4.6 | DN200 | DN200 | DN80 | DN40 | DN50 | 2550 | 5300 |
| HKY-50C | 3300 | 5550 | 5030 | 11 | 2950 | 4.7 | DN125*4 | DN250 | DN80 | DN40 | DN50 | 2850 | 6200 |
| HKY-50D | 3300 | 5550 | 5640 | 11 | 2950 | 5.5 | DN125*4 | DN250 | DN80 | DN40 | DN50 | 3250 | 6600 |
| HKY-50E | 3800 | 5550 | 5640 | 15 | 2950 | 5.5 | DN150*4 | DN300 | DN80 | DN40 | DN50 | 3550 | 7400 |
| Type | Finished Size (mm) | Pneumatic System | Tower Lift | Interface Pipe Diameter（mm） | Weight | ||||||||
| Length(L) | Width(W) | Height(H) | Power(kw) | Diamete(mm) | mH₂O | Inlet pipe | Outlet Pipe | Overflow outlet pipe | Supplement Water Pipe | Sewage Outlet Pipe | Net Weight(Kg) | Operating Weight(kg) | |
| HKY-60A | 3800 | 6000 | 5800 | 15 | 3400 | 5.6 | DN150*4 | DN300 | DN80 | DN50 | DN50 | 4050 | 8200 |
| HKY-60B | 4600 | 6000 | 5800 | 15 | 3400 | 5.6 | DN150*4 | DN300 | DN80 | DN50 | DN50 | 4650 | 9800 |
| HKY-60C | 4600 | 6200 | 6000 | 18.5 | 3600 | 5.8 | DN150*4 | DN300 | DN80 | DN50 | DN50 | 5050 | 10500 |
| HKY-60D | 5100 | 6200 | 6000 | 22 | 3600 | 5.8 | DN150*4 | DN300 | DN80 | DN50 | DN50 | 5450 | 11500 |
| HKY-60E | 5300 | 6800 | 6850 | 30 | 4200 | 6.2 | DN200*4 | DN350 | DN80 | DN50*2 | DN50 | 6250 | 13800 |
| HKY-60F | 5500 | 7300 | 7200 | 37 | 4700 | 6.8 | DN200*4 | DN350 | DN80 | DN50*2 | DN50 | 6950 | 15500 |
Remarks:
1.Design conditions: Inlet temperature t1=37℃, outlet temperature t2=32℃, wet bulb temperature t=28℃, dry bulb temperature O=31.5℃, barometric pressure P=9.94×104Pa
2.The above technical parameters are for reference only. Our company reserves the right to modify the product appearance and technical parameters due to the continuous upgrading of technology
