Product features

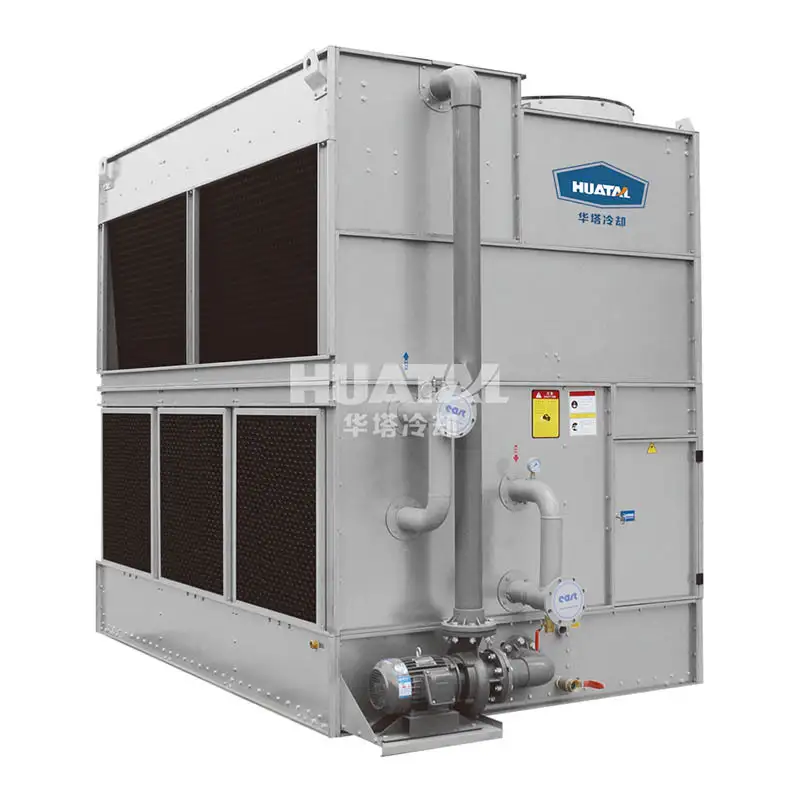

HBY Colsed circuit cross flow cooling tower

◆ Imported POSCO Zinc Magnesium Aluminum Alloy Coated Plate with outstanding anti-corrosion effect. The service life is around 10-20 times of normal galvanized plate, the surface coating has fluidity, with cut protection (automatic healing).

◆ Water sprays on the surface of condenser to avoid water scale in the dry point area, thus maximizing the efficiency of the system.

◆ The effective dehydrator features extremely low drifting ratio.

◆ Small occupation, set with inspection gallery for daily maintenance.

◆ It is the anti-freezing and energy saving cooling tower. When we shut down the system, the water in the condenser can automatically return to the water tank for protecting the condenser from freezing. The system also has automatic digital temperature display and control, energy saving and eco-friendly.

HBY Closed circuit cross flow cooling tower 3

Product features

HBY Colsed circuit cross flow cooling tower

◆ HBY cross flow closed cooling tower is suitable for various industries, such as casting, forging, air compressor, die casting machine, injection molding machine, electric furnace, water-cooled screw machine, etc…

◆ HBY cross flow closed cooling tower, the coil pipe is at the bottom of the equipment, the center of gravity is stable, and the operation is smooth; Equipped with maintenance channels, double-sided maintenance, convenient for daily maintenance; the heat sink adopts a special flow channel design to prolong the heat exchange time of the spray water, control the temperature of the spray water, the outer wall of the coil pipe is not easy to scale.

◆ HBY cross flow closed cooling tower, shell and structural steel adopts imported magnesium aluminum zinc alloy coated plate, or 304 stainless steel plate, imported motor, high air bucket, large air volume and low noise fan, special spray pump for evaporative cooling only, large water volume and low lift, ABS nozzle has patent certificate, and spray evenly. The coil pipe has the patent certificate, the pipe length is long, the pressure loss is small, the flow rate is controlled at 2.1 meters per second. The tube can adopts T2 deacidified red copper, or 304/316 stainless steel to meet the customized requirements.

◆ HBY cross flow closed cooling tower has a single inlet surface, which occupies a small area and has a high heat transfer efficiency.

◆ The water inlet and outlet of the HBY cross flow closed cooling tower are low and convenient for pipeline connection.

◆ The designed flow rate of HBY cross flow closed cooling tower is from 25m³/h to 500 m³/h; whit strong universality, it also can be jointed together, and meet various industries requirements.

HBY Closed circuit cross flow cooling tower 4

HBY series coil pipe minimum water flow chart
Type	(Liters /per sec)
HBY-19A、19B、19C、19D、19E、19F	6.9-18.1
HBY-22A、22B、22C、22D、22E、22F、22G	22.2-48.6
HBY-26A、26B	55.6-62.5
HBY-29A、29B、29C	69.4-83.3

Technical parameters

Type	Finished Size(mm)				Pneumatic system		Spray pump		Interface pipe diameter（mm）			Weight
Type	Tota length(L)	Length(L1)	Width (W)	Height (H)	Power (kw)	Air Volume (m³/h)	Power (Kw)	Water yield (m³/h)	Inlet and outlet pipe	Overflow outlet Sewage outlet	Supplement water pipe	Net weight (Kg)	Operating weight (Kg)
HBY-19A	2540	2180	1940	2200	1.1*2	26000	1.5	45	DN80	DN40	DN25	1020	1820
HBY-19B	2960	2600	1940	2200	1.1*2	26000	1.5	45	DN80	DN40	DN25	1050	2020
HBY-19C	2960	2600	1940	2200	1.1*2	26000	1.5	45	DN80	DN40	DN25	1100	2100
HBY-19D	3360	3000	1940	2200	1.1*3	39000	2.2	60	DN80	DN40	DN25	1310	2540
HBY-19E	3360	3000	1940	2580	1.1*3	39000	2.2	60	DN100	DN40	DN25	1450	3080
HBY-19F	3360	3000	1940	2730	1.5*3	54600	2.2	60	DN100	DN40	DN25	1520	3200
HBY-22A	4220	3800	2240	2680	1.5*4	72800	2.2	114	DN125	DN40	DN25	2050	4920
HBY-22B	4220	3800	2240	2680	1.5*4	72800	2.2	114	DN125	DN40	DN25	2100	5000
HBY-22C	4220	3800	2240	2840	1.5*4	72800	2.2	114	DN125	DN40	DN25	2150	5100
HBY-22D	4220	3800	2240	2840	1.5*4	72800	2.2	114	DN125	DN40	DN25	2250	5250
HBY-22E	4740	4300	2240	2910	1.5*4	72800	3.7	140	DN100*2	DN40	DN25	2800	6800
HBY-22F	5440	5000	2240	2910	2.2*4	90000	3.7	140	DN100*2	DN40	DN25	3200	7820
HBY-22G	5440	5000	2240	2910	2.2*4	90000	3.7	140	DN125*2	DN40	DN25	3300	8000
HBY-26A	5840	5360	2600	3660	4*4	240000	5.5	160	DN125*2	DN40	DN25	5000	9000
HBY-26B	6420	5940	2600	3660	4*4	240000	5.5	160	DN125*2	DN40	DN25	5500	10000
HBY-29A	6420	5940	2900	3260	4*4	240000	5.5	160	DN150*2	DN40	DN25	6500	11500
HBY-29B	6420	5940	2900	3260	4*4	240000	5.5	160	DN150*2	DN40	DN25	6800	11800
HBY-29C	6420	5940	2900	3260	4*4	240000	5.5	160	DN150*2	DN40	DN25	7000	12000

Remarks:

1.Design conditions: Inlet temperature t1=37℃, outlet temperature t2=32℃, wet bulb temperature t=28℃, dry bulb temperature O=31.5℃, barometric pressure P=9.94×104Pa

2.The water tank should ensure that there is enough water, so that the water at the bottom of the tank can be higher than the pump inlet and filter screen when the system is running, and the general water level is > 300mm

3.The above technical parameters are for reference only. Our company reserves the right to modify the product appearance and technical parameters due to the continuous upgrading of technology
