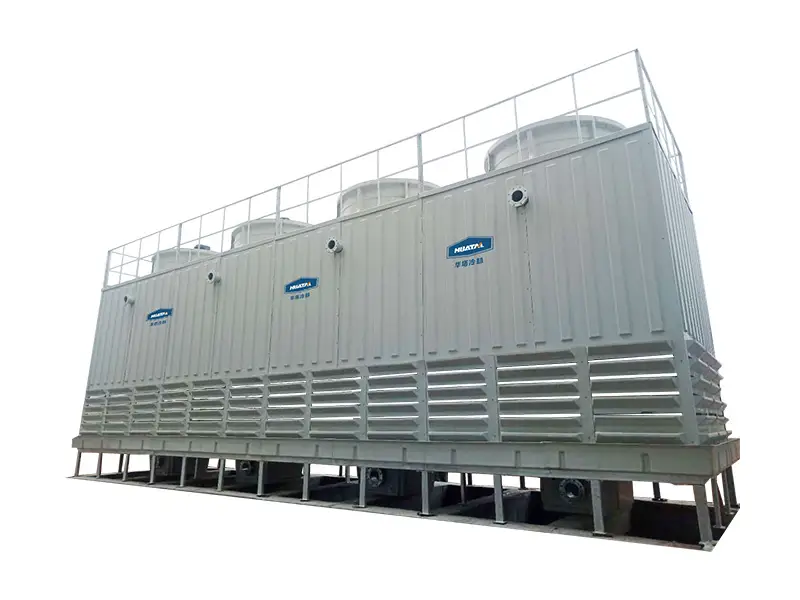

HKW FRP countercurrent open cooling tower

Our advantage

It adopts modular design with optimized structure and reasonable size, the combination of single or several units can be selected according to the installation site. The distance between the air inlet and air outlet is long for preventing hot reflux, it features high heat exchange efficiency with better effect in the freezing areas in the winter.

It adopts optimized flame retardant PVC for making the cooling fin and features flow conducting, heat emission, water collecting, easy washing and convenient disassembly.

The cooling effect reaches 100% of the design cooling efficiency, the drift ratio ≤0.001%, novel appearance; low noise, small occupation, energy saving and eco-friendly, anti-corrosion, long service life.

Design condition

1. Inlet temperature 37℃, outlet temperature 32℃, wet bulb temperature 28℃, dry bulb temperature 31.5℃, atmospheric pressure P=99.4kPa;

2. Flow range:22.2L/ S-222.2L/S;

3. This parameter table only provides some models, if you need other models, please contact the sales engineer;

4. Our company reserves the right to modify the parameter table later, if you need the latest version, please contact the sales engineer.
